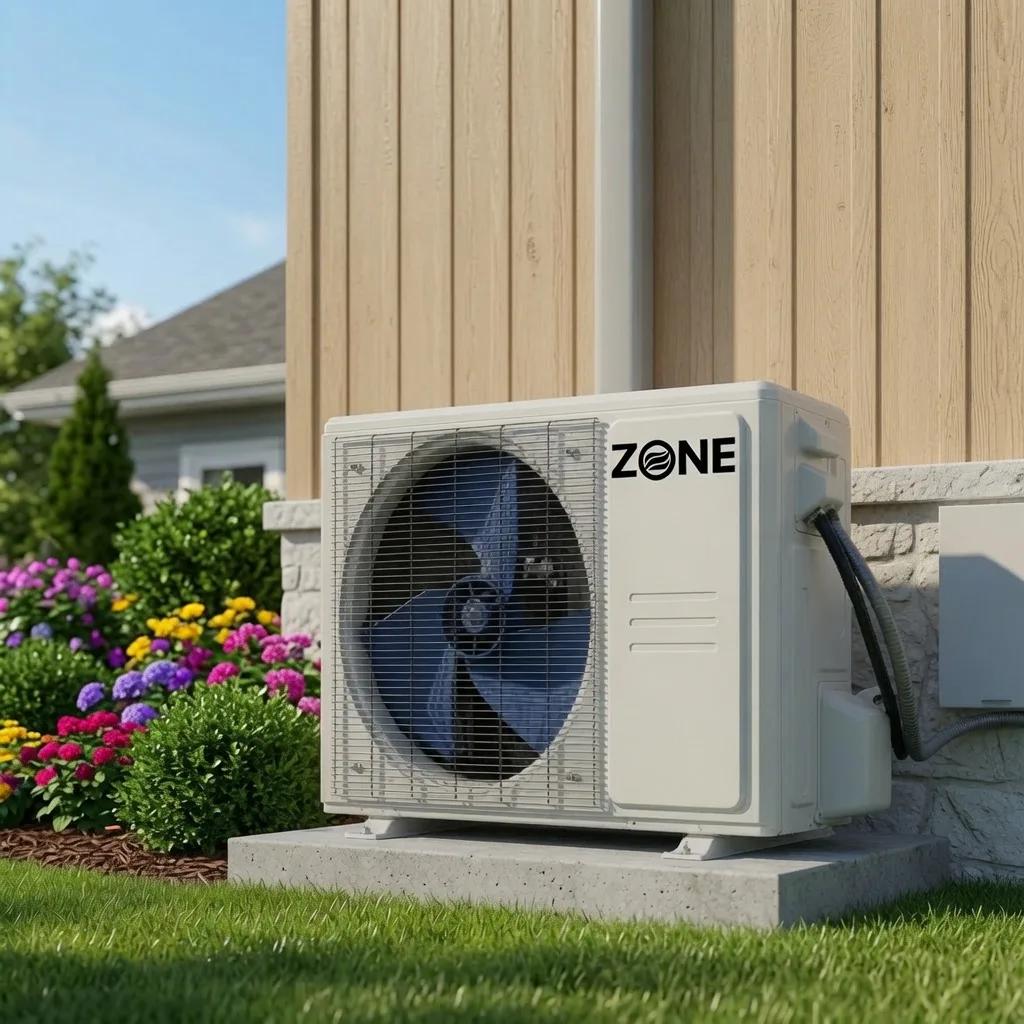

DIY Mini Split for a Shop: Heat & Cool Your Workshop Yourself by Zone Air
A DIY mini split for a shop or workshop delivers year-round heating and cooling you install yourself — no contractor, no ductwork. Most shops run 400–800 sq ft, so an 18,000 BTU system handles the load, with pre-charged line sets that skip the vacuum pump and EPA license.
Ready to condition your shop?
Not sure what size you need?
Size My System →
What Size Mini Split for a Shop?
Shops and workshops often have higher ceilings and less insulation than living spaces, so size up. At roughly 20 BTU per square foot, a 400–800 sq ft shop typically needs 12,000–18,000 BTU; an uninsulated or metal building may need the full 18,000 BTU or a multi-zone setup. Zone Air heat pumps run down to -13°F, so they keep a shop usable through winter. Check your exact space with the sizing calculator.
Why Shops Need Extra Capacity
A shop is one of the hardest spaces to condition. Between a leaky overhead door, bare concrete floors, high ceilings, and constant air loss, a garage workshop bleeds heat in winter and bakes in summer. Because these buildings are so poorly insulated, add 30–50% to the plain square-foot math, or the unit will struggle on the coldest days. A two-car, roughly 500 sq ft shop usually lands at 12,000–18,000 BTU.
Insulation matters more than floor area. A finished, drywalled shop holds temperature like a spare room, so you can stay near the 20 BTU/sq ft baseline, while a bare metal or pole building loses heat fast and runs better one size up. Ceilings over 8 ft add another 10–20%. Run your numbers through the sizing calculator or read what size mini split do I need.
115V Plug-In vs 230V for Your Shop
For a small shop or detached workshop, a 115V system is the simplest path. The 9,000 BTU and 12,000 BTU Zone Air units plug into a standard 110–120V outlet on a 15-amp breaker — no new circuit, no electrician. They cover up to about 450–600 sq ft and heat reliably below 0°F. Larger or uninsulated buildings step up to a 230V 18,000 BTU system, which may need a dedicated breaker.
Every Zone Air DIY system ships with pre-charged R454B line sets, so there is no vacuum pump and no EPA license required to install one. The indoor and outdoor units connect through a single small hole in the wall, skipping ductwork entirely, and the pre-charged design saves roughly $3,000–$5,000 versus a professional install. With up to 23–24 SEER2 efficiency, it also keeps the running cost of a year-round shop in check.
Get the right size for your shop, or size it first with the free calculator.
