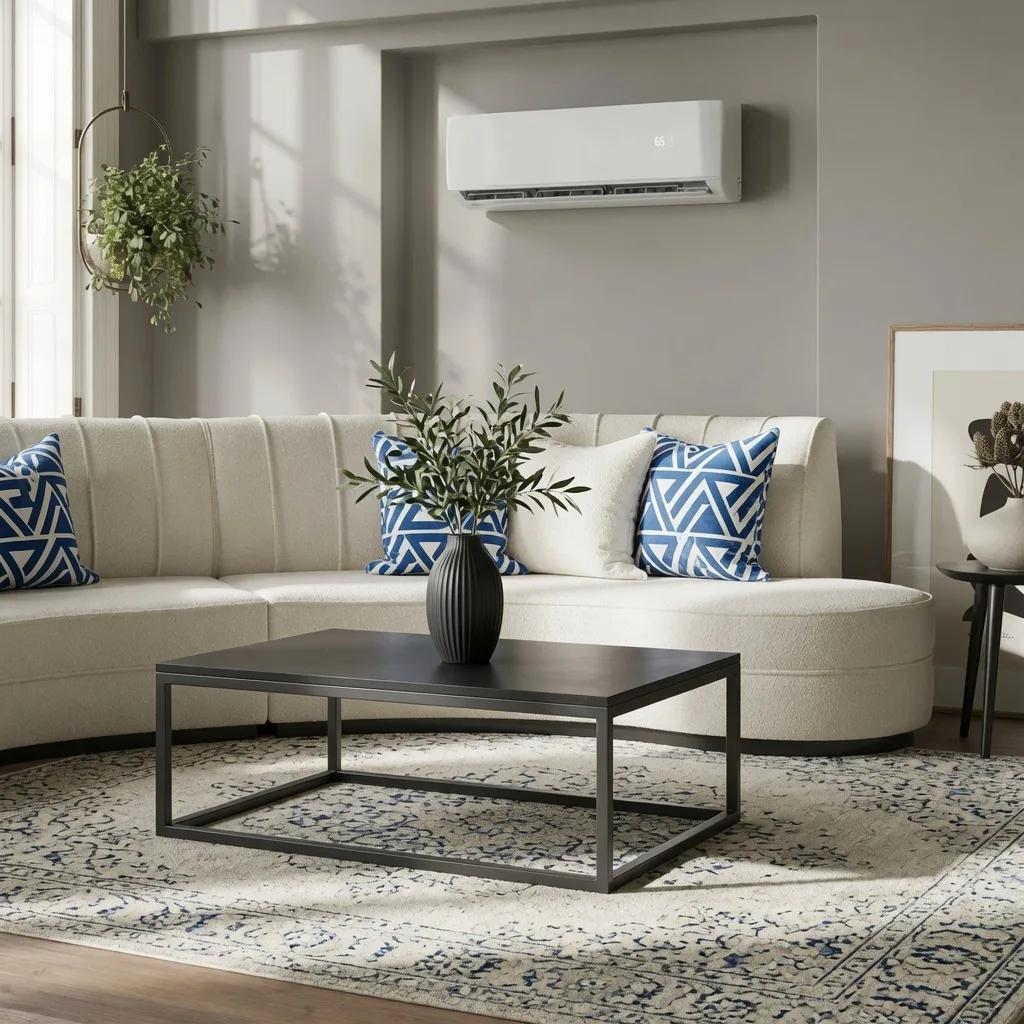

DIY Mini Split for 500 Sq Ft: The Right-Size System to Install Yourself by Zone Air
A DIY mini split for 500 sq ft calls for about 12,000 BTU (a 1-ton system) — enough to heat and cool the space without over- or under-sizing. Zone Air’s 12,000 BTU systems are pre-charged and quick-connect, so you install it yourself in an afternoon.
Ready to cool 500 sq ft?
Not sure what size you need?
Size My System →
What Size Mini Split for 500 Sq Ft?
At about 20 BTU per square foot, 500 sq ft works out to roughly 10,000 BTU — so a 12,000 BTU (1-ton) system is the standard pick, with headroom for sun-facing walls or open kitchens. If the space is well-shaded and tightly insulated, a 9,000 BTU unit can be enough. Vaulted ceilings or lots of glass push you toward the full 12,000 BTU. Confirm with the sizing calculator.
What Rooms Are About 500 Sq Ft?
500 sq ft is the sweet spot for a 12,000 BTU (1-ton) single-zone system. It covers a master bedroom, a large living room, a finished basement, a sunroom, or a roughly 20×25 ft open studio. On Zone Air’s own order data, the 12,000 BTU size is the single most-ordered unit — most buyers are conditioning one room under 600 sq ft, exactly this range. A 12,000 BTU system feeds one indoor head from one pre-charged outdoor unit, so each room gets its own thermostat and runs independently of the rest of the house.
Derating Factors That Change the Size
The 20 BTU-per-square-foot rule is a starting point, not the final word. Vaulted or high ceilings, lots of west-facing glass, a kitchen with heat-producing appliances, or thin insulation all add load and push a 500 sq ft room toward the full 12,000 BTU. A well-shaded, tightly sealed room can drop to 9,000 BTU. Resist the urge to oversize “just to be safe” — an oversized unit short-cycles, which leaves the air clammy because it never runs long enough to dehumidify, and it wears components faster. For a borderline 500 sq ft room, the free sizing calculator accounts for ceiling height, sun exposure, insulation, and climate zone. If your 500 sq ft is actually two split rooms or opens into a larger great room, step up to an 18,000 BTU system instead.
Installing a 500 Sq Ft System Yourself
Zone Air’s 12,000 BTU systems ship pre-charged with R454B refrigerant and quick-connect line sets, so a DIY install needs no vacuum pump, no gauges, and no EPA license. You mount the indoor head, set the outdoor unit, and tighten the line-set fittings by hand — most installs finish in an afternoon. For a deeper look at sizing tradeoffs, read what size mini split do I need.
Get a right-sized system for 500 sq ft, or size it first with the free calculator.
